    Slewing bearing with flange

    This bearings are used in several applications; amongst the most important we could mention agricultural trailers, irrigation systems and airport luggage carriers. In the applications on vehicles, bearings transmit not only axial load, but also radial load and torque. In other applications they transmit mostly axial load.

    light series bearinng

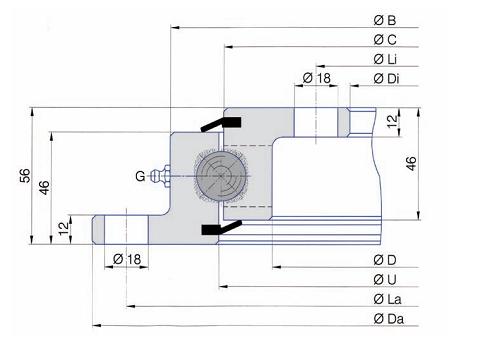

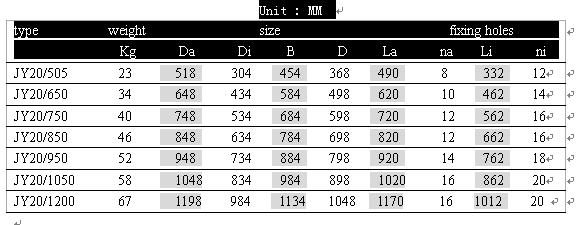

    Products drawings and curve -- no gear type(Series : JY20)

    slewing ring

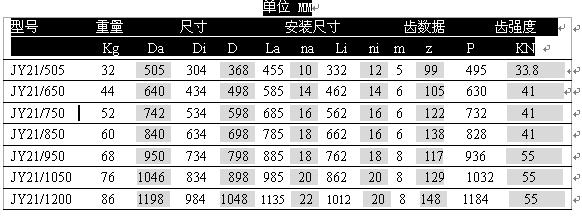

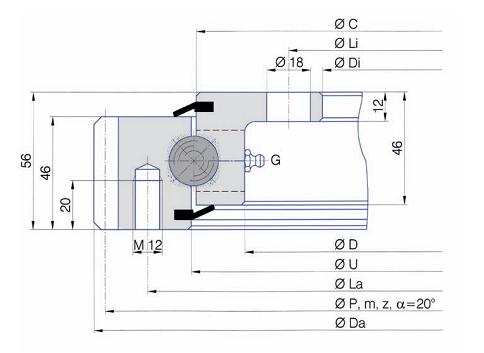

    Products drawing and curve -- outer gear type(Series : JY 21)

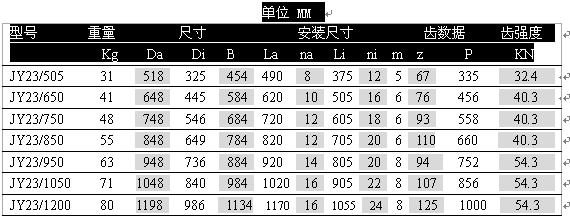

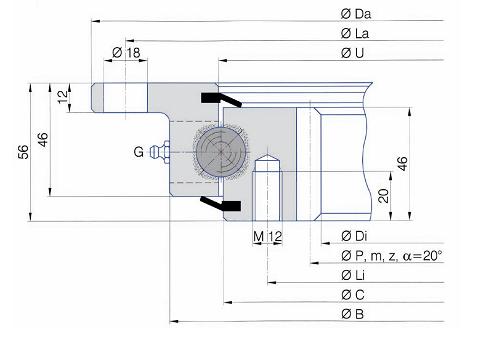

    Products drawing and curve -- inner gear type(Series : JY23)

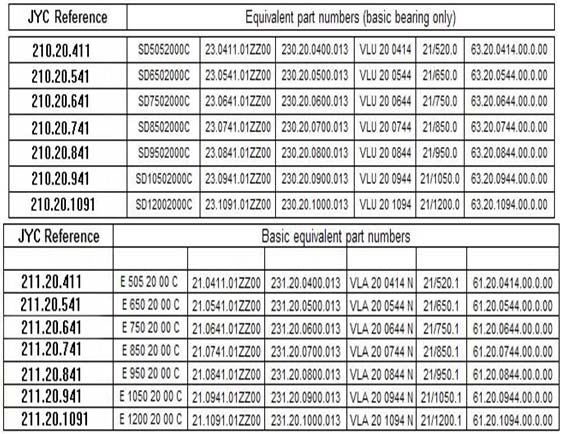

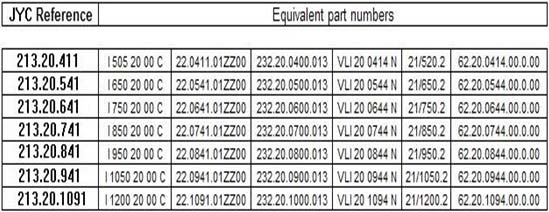

    reference
