Thin section 4-point contact ball bearing

thin section four-point contact ball bearings are with the characteristics of a compact structure, load capacity and small friction torque .single bearing can also withstand axial force, radial force and overturning moment. it has been used to promote aerospace vehicle manufacturers, medical equipment and other technical fields.

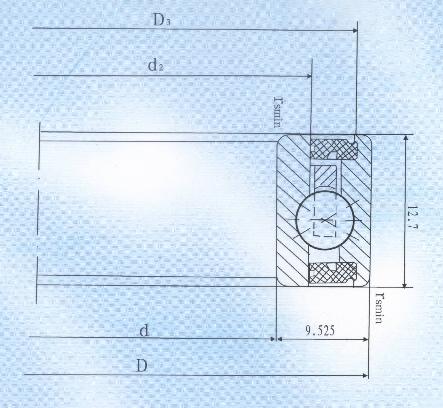

main technical parameters of thin section four-point contact ball bearings are as follows

Bearing Type	Dimensions						Basic load ratings
	d		D	d2	D3	rsmin	C	C0
	Inches	mm					kN
FPXU 400 2RU	4	101.60	120.65	108.65	115.0	0.2	11.10	16.23
FPXU 404 2RU	41/4	107.95	127.00	115.00	121.4	0.2	11.28	17.06
FPXU 408 2UR	41/2	114.30	133.35	121.35	127.7	0.2	11.63	18.30
FPXU 412 2RU	43/4	120.65	139.70	127.70	134.1	0.2	11.80	19.13
FPXU 500 2RU	5	127.00	146.05	134.05	140.4	0.2	11.97	19.96
FPXU 508 2RU	51/2	139.70	158.75	146.75	153.1	0.2	12.44	22.02
FPXU 600 2RU	6	152.40	171.45	159.45	165.8	0.2	12.73	23.68
FPXU 608 2RU	61/2	165.10	184.15	172.15	178.5	0.2	13.16	25.75
FPXU 700 2RU	7	177.80	196.85	184.85	191.2	0.2	13.43	27.40
FPXU 708 2RU	71/2	195.50	209.55	197.55	203.9	0.2	13.81	29.47
FPXU 800 2RU	8	203.20	222.25	210.25	216.6	0.2	14.06	31.13
FPXU 900 2RU	9	228.60	247.65	235.65	242.0	0.2	14.65	34.85
FPXU 1000 2RU	10	254.00	273.05	261.05	267.4	0.2	15.20	38.57
FPXU 1100 2RU	11	279.40	298.45	286.45	292.8	0.2	15.61	41.88
FPXU 1200 2RU	12	304.80	323.85	311.85	318.2	0.2	16.11	45.60

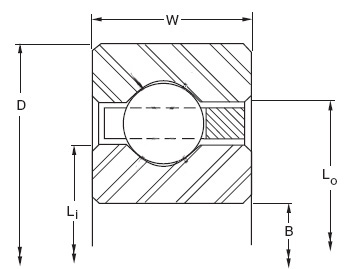

NUMBER	NOMINAL DIMENSIONS IN INCHES						Ball Quantity	Approx Weight	Radial		Limiting Speed (RPM)
	B Bore	D Outside Diameter	W Width	hole PCD		Ball Diameter			Static	Dyamic
	B Bore	D Outside Diameter	W Width	Li Inne ring	Lo Outer ring	Ball Diameter			Static	Dyamic
PAA10CL0	1.0000	1.3750	0.1875	1.141	1.234	3/32	21	0.03	210	270	10.110
PAA15CL0	1.5000	1.8750	0.1875	1.641	1.734	3/32	29	0.04	280	310	7.110
PA020CP0 PB020CP0	2.0000 2.0000	2.5000 2.6250	0.2500 0.3125	2.188 2.234	2.313 2.391	1/8 5/32	27 23	0.10 0.16	460 630	490 700	5.330 5.190
PA025CP0 PB025CP0	2.5000 2.5000	3.0000 3.1250	0.2500 0.3125	2.688 2.734	2.813 2.891	1/8 5/32	33 28	0.13 0.20	560 750	530 750	4.360 4.270
PA030CP0 PB030CP0	3.0000 3.0000	3.5000 3.6250	0.2500 0.3125	3.188 3.234	3.313 3.391	1/8 5/32	39 33	0.15 0.24	660 880	560 800	3.690 3.620
PA035CP0 PB035CP0	3.5000 3.5000	4.0000 4.1250	0.2500 0.3125	3.688 3.734	3.813 3.897	1/8 5/32	45 38	0.18 0.27	750 1.000	590 840	3.200 3.150
PA040CP0 PB040CP0 PC040CP0 PD040CP0 PF040CP0 PG040CP0	4.0000 4.0000 4.0000 4.0000 4.0000 4.0000	4.5000 4.6250 4.7500 5.0000 5.5000 6.0000	0.2500 0.3125 0.3750 0.5000 0.7500 1.0000	4.188 4.234 4.281 4.375 4.563 4.750	4.313 4.391 4.469 4.625 4.938 5.250	1/8 5/32 3/16 1/4 3/8 1/2	51 43 35 27 19 15	0.19 0.30 0.45 0.78 1.90 3.60	850 1.130 1.340 2.120 3.450 5.610	620 880 1.120 1.960 3.530 6.060	2.820 2.780 2.740 2.670 2.530 2.400
PA042CP0 PB042CP0 PC042CP0 PD042CP0 PF042CP0 PG042CP0	4.2500 4.2500 4.2500 4.2500 4.2500 4.2500	4.7500 4.8750 5.0000 5.2500 5.7500 6.2500	0.2500 0.3125 0.3750 0.5000 0.7500 1.0000	4.438 4.484 4.531 4.625 4.813 5.000	4.563 4.641 4.719 4.875 5.188 5.500	1/8 5/32 3/16 1/4 3/8 1/2	54 45 37 28 20 15	0.20 0.31 0.47 0.83 2.00 3.80	900 1.180 1.410 2.190 3.610 5.610	640 890 1.150 1.970 3.600 6.060	2.670 2.630 2.590 2.530 2.400 2.290
PA045CP0 PB045CP0 PC045CP0 PD045CP0 PF045CP0 PG045CP0	4.5000 4.5000 4.5000 4.5000 4.5000 4.5000	5.0000 5.1250 5.2500 5.5000 6.0000 6.5000	0.2500 0.3125 0.3750 0.5000 0.7500 1.0000	4.688 4.734 4.781 4.875 5.063 5.250	4.813 4.891 4.969 5.125 5.438 5.750	1/8 5/32 3/16 1/4 3/8 1/2	57 48 39 30 21 16	0.22 0.33 0.48 0.88 2.10 4.00	950 1.260 1.480 2.340 3.780 5.980	640 920 1.170 2.030 3.670 6.330	2.530 2.490 2.460 2.400 2.290 2.180
PA047CP0 PB047CP0 PC047CP0 PD047CP0 PF047CP0 PG047CP0	4.7500 4.7500 4.7500 4.7500 4.7500 4.7500	5.2500 5.3750 5.5000 5.7500 6.2500 6.7500	0.2500 0.3125 0.3750 0.5000 0.7500 1.0000	4.938 4.984 5.031 5.125 5.313 5.500	5.063 5.141 5.219 5.375 5.688 6.000	1/8 5/32 3/16 1/4 3/8 1/2	60 50 41 31 22 17	0.23 0.34 0.50 0.94 2.20 4.10	1.000 1.310 1.550 2.420 3.950 6.360	660 930 1.190 2.050 3.750 6.590	2.400 2.370 2.340 2.290 2.180 2.090
PA050CP0 PB050CP0 PC050CP0 PD050CP0 PF050CP0 PG050CP0	5.0000 5.0000 5.0000 5.0000 5.0000 5.0000	5.5000 5.6250 5.7500 6.0000 6.5000 7.0000	0.2500 0.3125 0.3750 0.5000 0.7500 1.0000	5.188 5.234 5.281 5.375 5.563 5.750	5.313 5.391 5.469 5.625 5.938 6.250	1/8 5/32 3/16 1/4 3/8 1/2	63 53 43 33 23 18	0.24 0.38 0.58 1.00 2.30 4.30	1.050 1.380 1.630 2.570 4.110 6.730	670 950 1.220 2.110 3.810 6.840	2.290 2.260 2.230 2.180 2.090 2.000
PA055CP0 PB055CP0 PC055CP0 PD055CP0 PF055CP0 PG055CP0	5.5000 5.5000 5.5000 5.5000 5.5000 5.5000	6.0000 6.1250 6.2500 6.5000 7.0000 7.5000	0.2500 0.3125 0.3750 0.5000 0.7500 1.0000	5.688 5.734 5.781 5.875 6.063 6.250	5.813 5.891 5.969 6.125 6.438 6.750	1/8 5/32 3/16 1/4 3/8 1/2	69 58 47 36 25 19	0.25 0.41 0.59 1.06 2.50 4.70	1.140 1.510 1.770 2.790 4.440 7.070	690 990 1.250 2.180 3.930 6.980	2.090 2.060 2.040 2.000 1.920 1.850
PA060XP0 PB060XP0 PC060XP0 PD060XP0 PF060XP0 PG060XP0	6.0000 6.0000 6.0000 6.0000 6.0000 6.0000	6.5000 6.7500 7.5000 7.0000 7.2500 8.0000	0.2500 0.3125 0.3750 0.5000 0.7500 1.0000	6.188 6.281 6.563 6.688 6.781 7.063	6.234 6.375 6.750 6.734 6.875 7.250	1/8 5/32 3/16 1/4 3/8 1/2	75 63 51 39 27 21	.28 .44 .63 1.16 2.70 5.10	1,240 1,640 1,920 3,010 4,780 7,770	710 1,020 1,290 2,240 4,060 7,320	1,920 1,900 1,880 1,850 1,780 1,710
PA065XP0 PB065XP0 PC065XP0 PD065XP0 PF065XP0 PG065XP0	6.5000 6.5000 6.5000 6.5000 6.5000 6.5000	7.5000 7.7500 8.5000 8.0000 8.2500 9.0000	0.2500 0.3125 0.3750 0.5000 0.7500 1.0000	7.188 7.281 7.563 7.688 7.781 8.063	7.234 7.375 7.750 7.734 7.875 8.250	1/8 5/32 3/16 1/4 3/8 1/2	81 68 55 42 29 22	.30 .47 .68 1.22 2.90 5.40	1,340 1,760 2,060 3,230 5,110 8,100	730 1,040 1,320 2,300 4,150 7,410	1,780 1,760 1,750 1,710 1,660 1,600
PA070XP0 PB070XP0 PC070XP0 PD070XP0 PF070XP0 PG070XP0	7.0000 7.0000 7.0000 7.0000 7.0000 7.0000	8.5000 8.7500 9.5000 9.5000 9.7500 10.5000	0.2500 0.3125 0.3750 0.5000 0.7500 1.0000	8.188 8.281 8.563 9.188 9.281 9.563	8.234 8.375 8.750 9.234 9.375 9.750	1/8 5/32 3/16 1/4 3/8 1/2	87 73 59 45 31 24	.31 .50 .73 1.31 3.20 5.80	1,430 1,890 2,210 3,450 5,440 8,800	740 1,070 1,370 2,350 4,260 7,730	1,660 1,640 1,630 1,600 1,550 1,500
PA075XP0 PB075XP0 PC075XP0 PD075XP0 PF075XP0 PG075XP0	7.5000 7.5000 7.5000 7.5000 7.5000 7.5000	8.0000 8.1250 8.2500 8.5000 9.0000 9.5000	0.2500 0.3125 0.3750 0.5000 0.7500 1.0000	10.188 10.281 10.563 6.313 6.469 6.938	10.234 10.375 10.750 6.391 6.625 7.250	1/8 5/32 3/16 1/4 3/8 1/2	93 78 63 48 33 25	.34 .53 .78 1.41 3.40 6.10	1,530 2,010 2,350 3,670 5,770 9,120	760 1,090 1,390 2,430 4,370 7,790	1,550 1,540 1,520 1,500 1,450 1,410
PA080XP0 PB080XP0 PC080XP0 PD080XP0 PF080XP0 PG080XP0	8.0000 8.0000 8.0000 8.0000 8.0000 8.0000	8.5000 8.6250 8.7500 9.0000 9.5000 10.0000	0.2500 0.3125 0.3750 0.5000 0.7500 1.0000	6.813 6.969 7.438 7.313 7.469 7.938	6.891 7.125 7.750 7.391 7.625 8.250	1/8 5/32 3/16 1/4 3/8 1/2	99 83 67 51 35 27	.38 .57 .84 1.53 3.50 6.50	1,630 2,140 2,500 3,890 6,110 9,820	790 1,120 1,420 2,470 4,470 8,090	1,450 1,440 1,430 1,410 1,370 1,330
PA090XP0 PB090XP0 PC090XP0 PD090XP0 PF090XP0 PG090XP0	9.0000 9.0000 9.0000 9.0000 9.0000 9.0000	9.5000 9.6250 9.7500 10.0000 10.5000 11.0000	0.2500 0.3125 0.3750 0.5000 0.7500 1.0000	7.813 7.969 8.438 8.313 8.469 8.938	7.891 8.125 8.750 8.391 8.625 9.250	1/8 5/32 3/16 1/4 3/8 1/2	111 93 75 57 39 30	.44 .66 .94 1.72 3.90 7.20	1,820 2,390 2,790 4,330 6,770 10,840	810 1,150 1,480 2,560 4,650 8,410	1,300 1,290 1,280 1,260 1,230 1,200
PA100XP0 PB100XP0 PC100XP0 PD100XP0 PF100XP0 PG100XP0	10.0000 10.0000 10.0000 10.0000 10.0000 10.0000	10.5000 10.6250 10.7500 11.0000 11.5000 12.0000	0.2500 0.3125 0.3750 0.5000 0.7500 1.0000	9.313 9.469 9.938 10.313 10.469 10.938	9.391 9.625 10.250 10.391 10.625 11.250	1/8 5/32 3/16 1/4 3/8 1/2	123 103 83 63 43 33	.50 .73 1.06 1.88 4.30 7.90	2,010 2,650 3,080 4,780 7,440 11,870	850 1,210 1,520 2,670 4,840 8,720	1,170 1,160 1,160 1,140 1,120 1,090
PA110XP0 PB110XP0 PC110XP0 PD110XP0 PF110XP0 PG110XP0	11.0000 11.0000 11.0000 11.0000 11.0000 11.0000	11.5000 11.6250 11.7500 12.0000 12.5000 13.0000	0.2500 0.3125 0.3750 0.5000 0.7500 1.0000	11.188 11.234 11.281 11.375 11.563 11.750	11.313 11.391 11.469 11.625 11.938 12.250	1/8 5/32 3/16 1/4 3/8 1/2	135 113 91 69 47 36	.52 .75 1.16 2.06 4.80 8.60	2,210 2,890 3,370 5,220 8,100 12,900	880 1,230 1,580 2,730 4,960 9,010	1,070 1,060 1,050 1,040 1,020 1,000
PA120XP0 PB120XP0 PC120XP0 PD120XP0 PF120XP0 PG120XP0	12.0000 12.0000 12.0000 12.0000 12.0000 12.0000	12.5000 12.6250 12.7500 13.0000 13.5000 14.0000	0.2500 0.3125 0.3750 0.5000 0.7500 1.0000	12.188 12.234 12.281 12.375 12.563 12.750	12.313 12.391 12.469 12.625 12.938 13.250	1/8 5/32 3/16 1/4 3/8 1/2	147 123 99 75 51 39	.56 .83 1.25 2.25 5.20 9.30	2,400 3,150 3,660 5,670 8,760 13,920	910 1,270 1,640 2,830 5,120 9,270	980 970 970 960 940 920
PB140XP0 PC140XP0 PD140XP0 PF140XP0 PG140XP0	14.0000 14.0000 14.0000 14.0000 14.0000	14.6250 14.7500 15.0000 15.5000 16.0000	0.3125 0.3750 0.5000 0.7500 1.0000	14.234 14.281 14.375 14.563 14.750	14.391 14.469 14.625 14.938 15.250	5/32 3/16 1/4 3/8 1/2	143 115 87 59 45	1.05 1.52 2.73 6.00 10.80	3,650 4,240 6,550 10,100 15,950	1,370 1,730 2,940 5,440 9,720	840 830 830 810 800
PB160XP0 PC160XP0 PD160XP0 PF160XP0 PG160XP0	16.0000 16.0000 16.0000 16.0000 16.0000	16.6250 16.7500 17.0000 17.5000 18.0000	0.3125 0.3750 0.5000 0.7500 1.0000	16.234 16.281 16.375 16.563 16.750	16.391 16.469 16.625 16.938 17.250	5/32 3/16 1/4 3/8 1/2	163 131 99 67 51	1.20 1.73 3.10 7.10 12.30	4,160 4,820 7,440 11,420 18,010	1,460 1,800 3,140 5,670 10,200	740 730 730 720 710
PB180XP0 PC180XP0 PD180XP0 PF180XP0 PG180XP0	18.0000 18.0000 18.0000 18.0000 18.0000	18.6250 18.7500 19.0000 19.5000 20.0000	0.3125 0.3750 0.5000 0.7500 1.0000	18.234 18.281 18.375 18.563 18.750	18.391 18.469 18.625 18.938 19.250	5/32 3/16 1/4 3/8 1/2	183 147 111 75 57	1.35 1.94 3.48 7.90 13.70	4,660 5,400 8,320 12,750 20,050	1,530 1,890 3,240 5,880 10,600	660 650 650 640 630
PB200XP0 PC200XP0 PD200XP0 PF200XP0 PG200XP0	20.0000 20.0000 20.0000 20.0000 20.0000	20.6250 20.7500 21.0000 21.5000 22.0000	0.3125 0.3750 0.5000 0.7500 1.0000	20.234 20.281 20.375 20.563 20.750	20.391 20.469 20.625 20.938 21.250	5/32 3/16 1/4 3/8 1/2	203 163 123 83 63	1.50 2.16 3.85 8.90 15.80	5,170 5,980 9,210 14,070 22,100	1,590 1,970 3,390 6,040 11,050	590 590 590 580 570
PC250XP0 PD250XP0 PF250XP0 PG250XP0	25.0000 25.0000 25.0000 25.0000	25.7500 26.0000 26.5000 27.0000	0.3750 0.5000 0.7500 1.0000	25.281 25.375 25.563 25.750	25.469 25.625 25.938 26.250	3/16 1/4 3/8 1/2	203 153 103 78	2.69 4.79 10.90 19.50	7,440 11,420 17,390 27,220	2,210 3,720 6,540 11,790	470 470 470 460
PC300XP0 PD300XP0 PF300XP0 PG300XP0	30.0000 30.0000 30.0000 30.0000	30.7500 31.0000 31.5000 32.0000	0.3750 0.5000 0.7500 1.0000	30.281 30.375 30.563 30.750	30.469 30.625 30.938 31.250	3/16 1/4 3/8 1/2	243 183 123 93	3.21 5.73 13.00 23.30	8,890 13,640 20,710 32,320	2,420 4,080 7,040 12,450	400 390 390 390
PF350XP0 PG350XP0	35.0000 35.0000	36.5000 37.0000	0.7500 1.0000	35.563 35.750	35.938 36.250	3/8 1/2	143 108	15.10 27.10	24,050 37,480	7,580 13,460	340 330
PF400XP0 PG400XP0	40.0000 40.0000	41.5000 42.0000	0.7500 1.0000	40.563 40.750	40.938 41.250	3/8 1/2	163 123	17.20 30.80	27,340 42,580	7,830 14,030	290 290

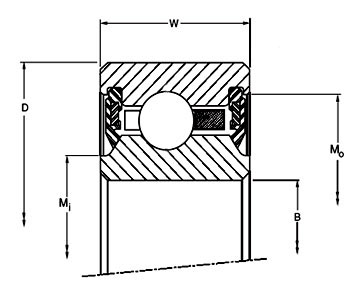

PART NUMBER							Approx Weight (ibs)	Radial		Limiting Speed (RPM)
PART NUMBER	B Bore	D Outside Diameter	W Width	Mj	Mo	Ball Diameter	Approx Weight (ibs)	Static	Dyamic	Limiting Speed (RPM)
PU040CP0	4.0000	4.7500	0.500	4.155	4.550	3/16	.55	1.340	1.120	2.280
PU042CP0	4.2500	5.0000	0.500	4.405	4.800	3/16	.58	1.410	1.150	2.160
PU045CP0	4.5000	5.2500	0.500	4.655	5.050	3/16	.61	1.480	1.170	2.050
PU047CP0	4.7500	5.5000	0.500	4.905	5.300	3/16	.65	1.550	1.190	1.950
PU050CP0	5.0000	5.7500	0.500	5.155	5.550	3/16	.68	1.630	1.220	1.860
PU055CP0	5.5000	6.2500	0.500	5.655	6.050	3/16	.74	1.770	1.250	1.700
PU060CP0	6.0000	6.7500	0.500	6.155	6.550	3/16	.81	1.920	1.290	1.570
PU065CP0	6.5000	7.2500	0.500	6.655	7.050	3/16	.87	2.060	1.320	1.460
PU070CP0	7.0000	7.7500	0.500	7.155	7.550	3/16	.93	2.210	1.370	1.360
PU075CP0	7.5000	8.2500	0.500	7.655	8.050	3/16	.99	2.350	1.390	1.270
PU080CP0	8.0000	8.7500	0.500	8.155	8.550	3/16	1.06	2.500	1.420	1.190
PU090CP0	9.0000	9.7500	0.500	9.155	9.550	3/16	1.18	2.790	1.480	1.070
PU100CP0	10.0000	10.7500	0.500	10.155	10.550	3/16	1.31	3.080	1.520	970
PU110CP0	11.0000	11.7500	0.500	11.155	11.550	3/16	1.43	3.370	1.580	880
PU120CP0	12.0000	12.7500	0.500	12.155	12.550	3/16	1.56	3.660	1.640	810
